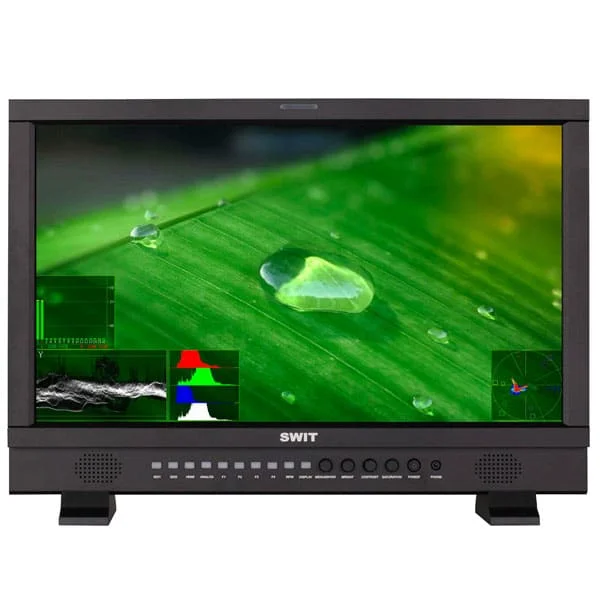

Presentation of the SWIT S-1223FS LCD 21.5 Full HD 3G SDI/HDMI monitor
The SWIT Waveform Studio 21.5″ Full HD LCD monitor features an IPS (In-Plane Switching) LCD panel with Full HD resolution. It also boasts LED backlighting, a 1000:1 contrast ratio for accurate color reproduction, and a 178° viewing angle. Supported video analysis assistant templates include: Waveform (Y/Pb/Pr/R/G/B), Vectorscope, and Histogram (R/G/B/Y). For added convenience, these templates can be individually enabled or disabled.
The SWIT S-1223FS can display built-in 16-channel SDI and 8-channel HDMI audio meters with markings and abnormal audio alert information. Users can also select any audio channel to output to the internal speakers or via the 3.5 mm audio output jack. The audio meter pattern position can be selected from Top/Bottom/Left/Right, and you can choose to display 2, 8, or 16 channels. It supports UMD and Text-Tally display of the TSL 3.1/4.0 protocol, with selectable TSL addresses from 1 to 126; up to 8 letters can be displayed.
Key features of the SWIT S-1223FS
- Resolution of 1920 x 1080
- 2K / 3G / HD / SD-SDI (x2)
- Focusing aid
- TSL UMD display and TALLY text
- Safety Marker 4: 3/13: 9/14: 9/15: 9 / 1.85: 1 / 2.35: 1
- False color, R/G/B/Mono, zebra stripes, internal color bar
- USB firmware update
