Description

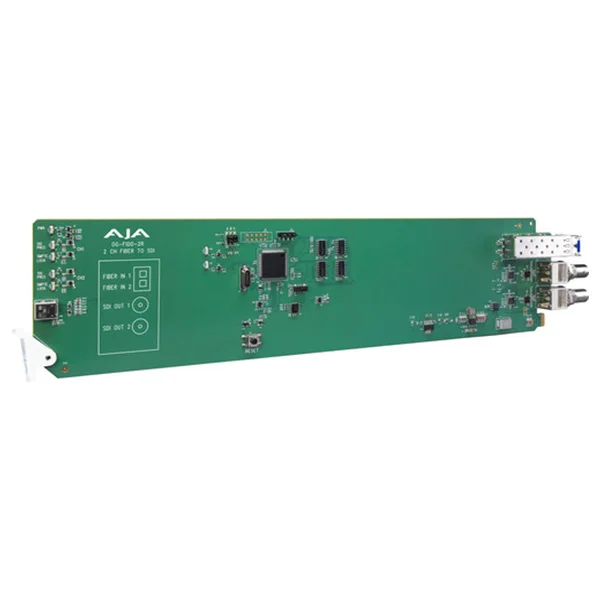

The OG-FiDO-2R is a 2-channel openGear-compatible Fibre to 3G-SDI converter that allows 3G-SDI signals to be extended up to 10 km using standard single-mode fiber optic cable. The two fiber inputs are completely independent, enabling different 3G-SDI data rates to be supported on each channel.
Designed for use with high-density openGear 2RU boards, including AJA’s OG-X-FR, the new DashBoard software support under Windows®, macOS® and Linux® provides remote control and monitoring of the openGear architecture as well as configuration and control options on a PC or local network.
Technical specifications of the OpenGear AJA OG-FIDO-2R card
Video formats: 150 Mbps3 Gbps, format agnostic
Inputs: 2x single-mode LC fiber
Outputs: 2x 3G-SDI BNC
Monitor via openGear Dashboard
Input presence and SMPTE input lock LEDs
Automatic detection and reclocking
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 GbpsAutomatic selection
Nominal wavelength: 1260-1620 nm
Power: 2.5 watts
Hot-swap capable
Compatible with openGear OGX, OG3 and DFR-8321 cards
Connectivity
The 3G-SDI input is automatically equalized, and the outputs are automatically reconfigured for optimal input jitter. SDI rates of 270 Mbps, 1.5 Gbps, and 3 Gbps are supported. One SDI input and nine SDI outputs are provided. A rear 10x BNC openGear connector module is included.
openGear compatibility
The openGear standard guarantees the compatibility of AJA boards with other openGear products from certified openGear partners. With a growing product list, openGear represents the future of rackframe products.
Flexibility I/O
The modular rear panel allows for custom I/O connections per card (supplied with individual cards).
Food
The optional redundant power supply provides a secondary power source in case of a primary power failure.
Download the Dashboard software
DashBoard software offers quick and convenient configuration and control of openGear boards on macOS, Windows, and Linux.
For the latest DashBoard software downloads corresponding to your platform of choice, please visit: .dashboard-software/.
#image_1887220115 {
width: 100%;
}
#image_177637354 {
width: 100%;
}
AJA Mini-Matrix
Information on the full range of AJA Rack cards and adapters is now available in the Mini-Matrix mobile app for iOS. AJA offers a comprehensive product line, and this app helps you find the right converter for every situation, wherever you are.
Individual products have links to the main AJA website for more details, and you can submit product information directly from the app. The free AJA Mini-Matrix app for iPad® and iPhone® is now available on the Apple iTunes® Store.
