Description

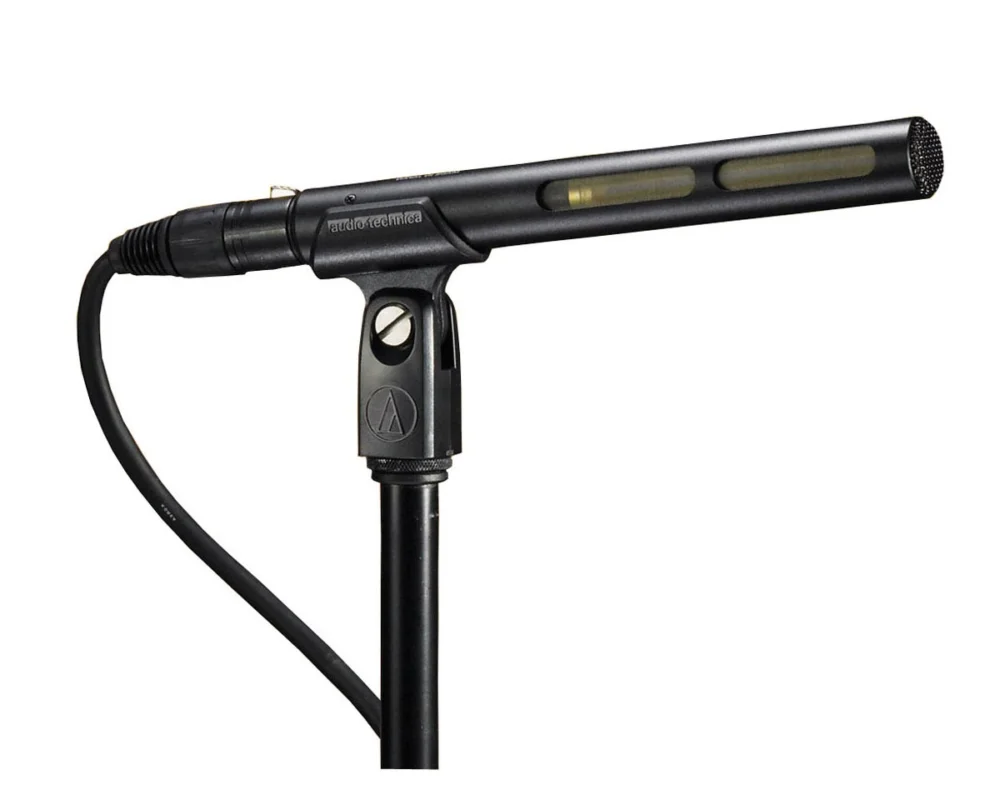

The Audio-Technica AT875R microphone is designed for video production and broadcast (ENG/EFP) applications . It’s the shortest shotgun microphone in the Audio-Technica range. It mounts easily and without significant added weight to a DV camcorder and is particularly well-suited for compact digital cameras. This high-performance microphone provides a narrow pickup angle in both line and gradient modes. On-axis sound is natural and smooth, with excellent off-axis rejection of sound coming from the sides and rear of the microphone.

Designed for video production and broadcast applications (ENG/EFP)
Ultra-short microphone (less than 7 inches), ideal for compact digital cameras
Provides the narrow pickup angle needed for distant sound recordings
Excellent rejection of sounds from the sides and rear of the microphone
Operates on phantom power only
Microphone complies with the European RoHS directive on hazardous substances

Technical specifications:

Capsule: Permanently polarized capacitor with fixed-charge plate
Directivity: Line + gradient
Frequency Response: 90-20,000 Hz
Sensitivity: 30 dB (31.6 mV) ref 1V/Pa
Impedance: 100 ohms
Maximum Sound Pressure Level: 127 dB SPL, 1 kHz at 1% THD
Dynamic Range: 107 dB, 1 kHz at max SPL
Signal-to-Noise Ratio: 74 dB, 1 kHz/Pa
Phantom Power: 11-52V DC, 2 mA typical
Weight: 80 g (2.8 oz)
Dimensions: Length 175.0 mm (6.89 in), diameter 21.0 mm (0.83 in)
Output Connector: Integrated 3-pin XLRM type
Accessories: AT8405a 5/8-27 threaded foot clamp; Threaded adapter for 5/8-27 to 3/8-16; foam windscreen; protective soft case
