Description

Key features:

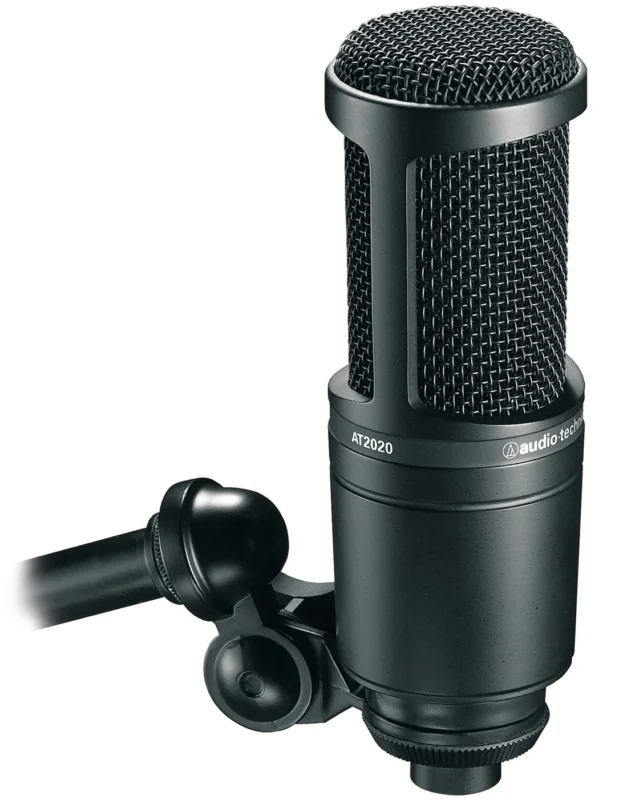

One of the best price-to-performance ratios in side-address studio condenser microphone technology
Ideal for studio applications
High SPL handling and exceptional dynamic range make the microphone particularly versatile
Custom-made, low-mass 16 mm diaphragm provides extended frequency response and superior transient response
Cardioid polar pattern for improved isolation of the sound source and reduced side and rear pickup
Threaded, swiveling stand mount ensures secure attachment and easy, precise microphone positioning

The AT2020 is designed for use in applications where an external power source is already available. It requires 48V DC phantom power, which can be supplied by a mixer or console, or by a separate, daisy-chained source such as the Audio-Technica AT8801 single-channel or CP8506 four-channel phantom power supply.
The microphone output is a balanced, low-impedance, 3-pin XLR male connector. The balanced signal is between pins 2 and 3, and the hot pin is on pin 2 (the positive voltage on the hot pin is generated by positive acoustic pressure on the capsule). The ground (shield) is on pin 1.

To avoid phase cancellation and poor sound quality, all microphone cables must be consistently connected: pin 1 to pin 1, etc.
Avoid leaving the microphone in direct sunlight or in locations where the temperature exceeds 43°C (110°F) for extended periods. Excessive humidity should also be avoided.
To contribute to standards development, ATUS provides information on its testing methods to industry professionals upon request.

Technical specifications:

Capsule: Permanently polarized condenser with fixed plate and fixed load.
Directivity: Cardioid.
Frequency Response: 20-20,000 Hz.
Sensitivity: 37 dB (14.1 mV) ref 1V/Pa.
Impedance: 100 ohms.
Maximum Sound Pressure Level: 144 dB SPL, 1 kHz at 1% THD.
Dynamic Range: 124 dB, 1 kHz at max SPL.
Signal-to-Noise Ratio: 74 dB, 1 kHz/Pa.
Phantom Power: 48V DC, 2 mA typical.
Weight: 345 g (12.1 oz).
Dimensions: Length 162.0 mm (6.38), maximum body diameter 52.0 mm (2.05).
Output Connector: Integrated 3-pin XLRM type.
Accessories: Mount for 5/8-27 threaded feet; Threaded adapter for 5/8-27 to 3/8-16; protective soft case
