Description

3G-SDI to HDMI 2.0 conversion with dashboardsupport

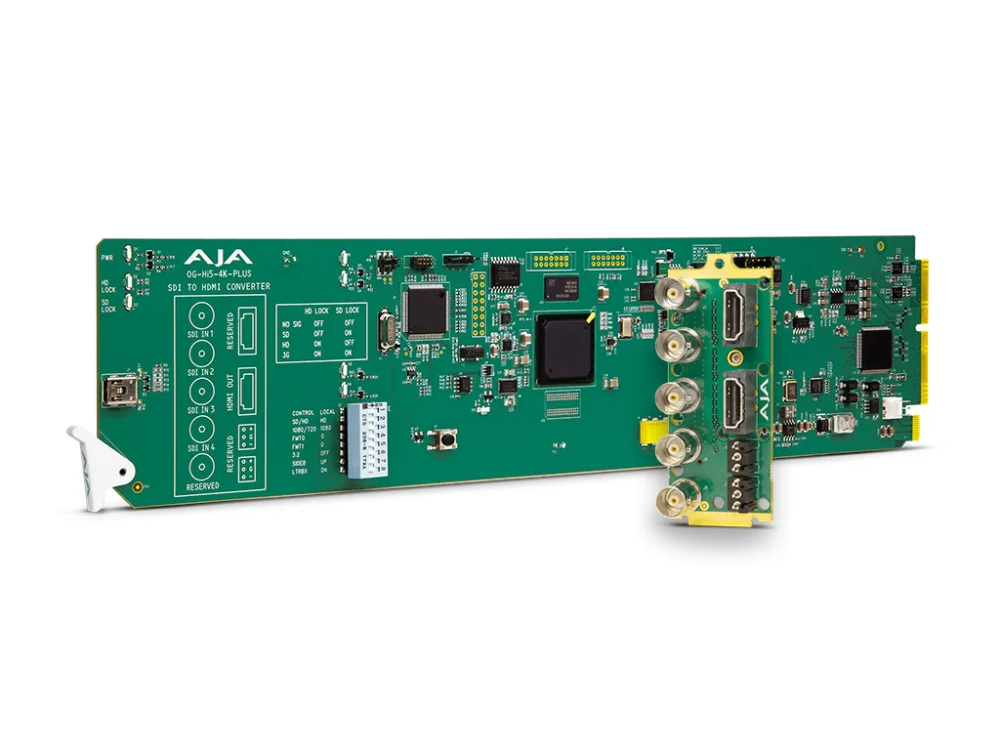

The openGear Aja OG-Hi5-4K-Plus card enables 3G-SDI to HDMI 2.0 conversion of 4K/UltraHD/2K/HD/SD sources, supporting professional devices up to 4K/UltraHD at 60p for monitoring on HDMI 2.0 displays. The openGear Aja OG-Hi5-4K-Plus card generates HDR metadata in accordance with the HDMI v2.0a/CTA-861.3 standard and offers a simple monitoring connection for 4K devices with Quad 3G-SDI or Dual 3G-SDI outputs to HDMI 2.0 compatible displays, with mapping for 2SI or Quadrant sources.

Developed for use with openGear 2RU racks, including the AJA OG-3-FR 2RU, the new Dashboard software, compatible with Windows®, macOS®, and Linux®, enables remote control and monitoring of the openGear architecture. It offers easy configuration and industry-standard remote monitoring via a computer or over the local network.

Key features of the opengear AJA OG-Hi5-4K-Plus sound card:

OpenGear compatible card
4 3G-SDI inputs
HDMI output support in 4:2:2/4:4:4
Network control via Dashboard software
HD upscaling supported
HDR support for HDR10 and HLG
Embedded audio support
Use in openGear 2RU racks including the AJA OG-3-FR chassis
5-year warranty

Connectivity:
The latest generation of affordable 4K displays uses an HDMI 2.0 connection, allowing the entire 4K signal to be transmitted over a single cable. Traditional professional workflows use four SDI cables to carry the full resolution of 4K signals, complicating the integration of this new type of monitoring. The OG-Hi5-4K-Plus is an easy-to-use converter that bridges these two worlds for universal integration.

HDR
, or High Dynamic Range, provides the ability to display a wider range of colors, much whiter whites, and much darker blacks than standard signals allow. These images offer a more dynamic appearance and allow viewers to perceive colors that closely resemble those seen by human vision.

The OG-Hi5-4K Plus offers this support for your 4K/UltraHD/HD HDR workflows via compatible HDMI displays by generating HDR metadata in accordance with the HDMI v2.0a/CTA-861.3 standard. The OG-Hi5-4K-Plus also provides HLG, for Hybrid Log-Gamma, compatibility for HDR displays via HDMI.

4K and UltraHD:
Standard 4K signals use a resolution of 4096×2160 pixels, while UltraHD signals are 3840×2160. This difference can prevent the use of certain monitors in full 4K workflows, or conversely, in UltraHD workflows. The OG-Hi5-4K-Plus can compensate for this resolution difference, allowing the use of UltraHD TVs in 4K productions and vice versa for UltraHD productions.

The OG-Hi5-4K-Plus is also compatible with high frame rate (HFR) input signals. It accepts 4K/UltraHD input signals at 50 or 60p and outputs them at up to 60p for proper viewing on compatible HDMI 2.0 displays.

HD Support:
Not all work is in 4K. When you’re not shooting in 4K, the OG-Hi5-4K-Plus can still be useful for converting HD-SDI signals to HDMI. A simple HD-SDI input signal into the OG-Hi5-4K-Plus will be output in HD resolution via HDMI.

Audio
Up to 8 channels of audio embedded in the incoming SDI signal will be routed to the HDMI output, ensuring your audio is perfectly synchronized for easy playback via the connected monitor.

Flexible I/O
The modular back panel allows for custom I/O connections per card (included with each card).

Safety:
The optional backup power supply provides a secondary power source to compensate for primary power failures.

Ethernet Access:
A standard Ethernet connection allows access to the entire chassis via the Dashboard application for all communications. Optional Ethernet access via a card can be installed for more advanced communications with compatible openGear cards.
