Description

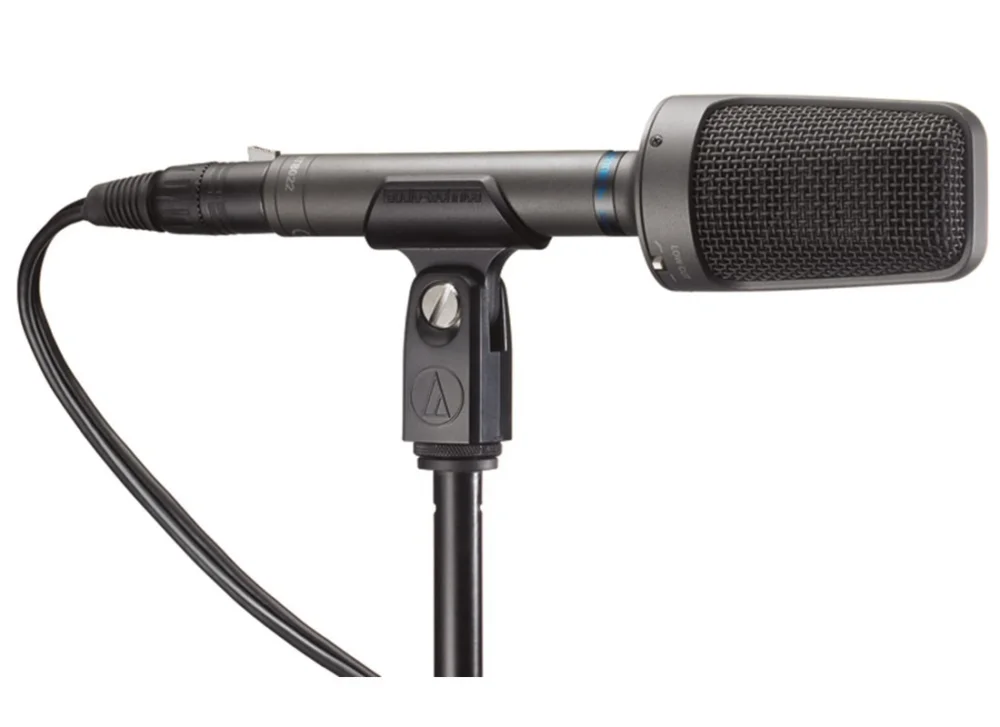

This stereo microphone features a unique coincident capsule configuration for accurate stereo imaging in a compact body. Designed specifically for outdoor stereo recording, interviews, and private recordings, the compact and lightweight AT8022 is equally suitable as a handheld microphone, or mounted on a boom pole or camera.

With its choice of balanced or unbalanced outputs, the AT8022 is extremely versatile and suitable for all stereo recording, ambient sound recording, and interview applications. In balanced mode, the Y-cable has two XLR connectors that allow for phantom power. Unbalanced mode requires an AA battery and a 3.5mm mini-jack output connector, providing the most professional broadcast microphone for use with cameras, MP3 recorders, or MiniDisc players.

Key features:

Innovative configuration capsule for precise stereo imaging in a compact body

• Its compact and lightweight design makes it ideal for mounting on video cameras and for stereo field recordings, interviews, and private recordings
• The ideal accessory for lightweight digital recording systems
• Battery or phantom power operationfor professional or amateur equipment
• Switchable bass attenuation
• Supplied with two cables: a balanced cable (two 3-pin XLRM connectors on the output), an unbalanced cable (3.5 mm TRS output)
• Compliant with the European RoHS directive on the reduction of hazardous substances

Technical specifications:

Capsule: Permanently polarized capacitor with fixed-charge plate
Channel Balance: < 2.5 dB
Directivity: Stereo X/Y
Frequency Response: 20-15,000 Hz
Bass Roll-off: 80 Hz, 12 dB/octave
Sensitivity: Phantom: -38 dB (12.5 mV) – Battery: -38 dB (12.5 mV)
Impedance: Phantom: 250 ohms – Battery: 300 ohms
Max SPL: Phantom: 128 dB – Battery: 120 dB SPL, 1 kHz at 1% THD
Dynamic Range (typical): Phantom: 109 dB – Battery: 101 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio: 75 dB, 1 kHz at 1 Pa*
Phantom Power Supply: 11-52V DC 2 mA typical (each channel)
Battery / Current / Life: 1.5V AA/UM3 / 0.7 mA / 700 hours typical (alkaline)
Switches: Battery On/Off; flat, bass attenuation
Weight (without cable or accessories): 247 g
Dimensions: Length 186.0 mm, head diameter 47.6 mm, maximum body diameter 21.0 mm
Output Connector: 5-pin XLRM type
Cables: Stereo cable, vinyl-covered, shielded, 8-conductor, 2.0 m long, with a 5-pin XLRF type connector on the microphone side, and two 3-pin XLRM type connectors on the output side; 0.6 m long stereo cable, with a 5-pin XLRF connector on the microphone end and a 3.5 mm stereo mini jack on the output end.
Accessories included: AT8405a 5/8-27 threaded stand clamp; AT8120 windscreen; 5/8-27 to 3/8-16 threaded adapter; battery; protective soft case
