Description

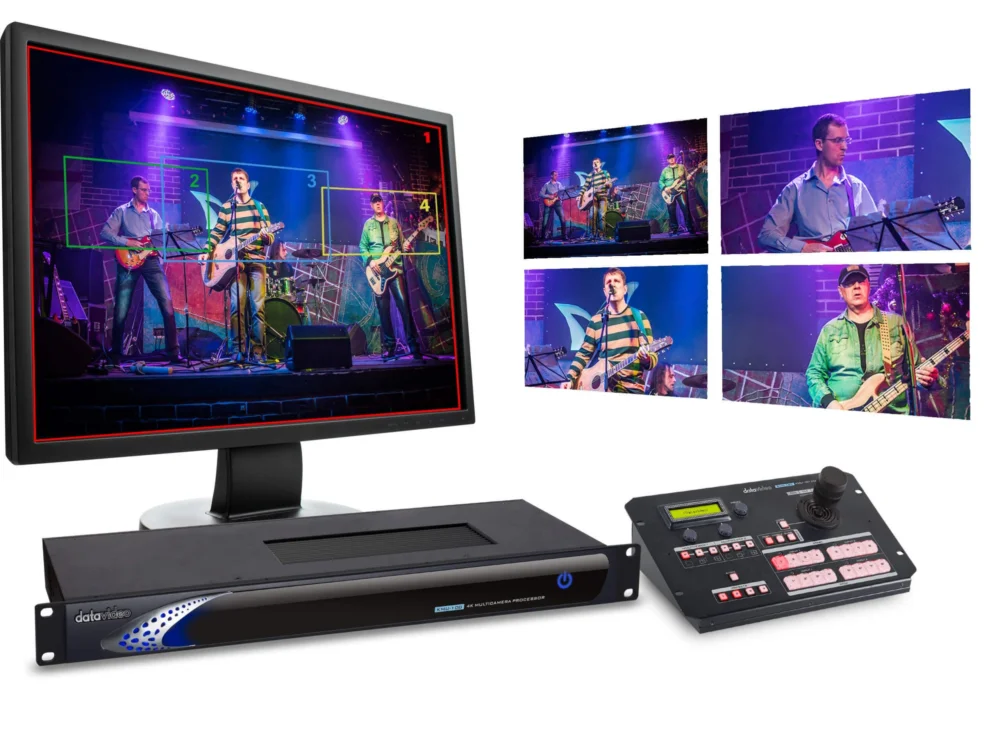

The KMU-100 is a unique 4K multi-camera production solution that delivers a multitude of virtual full HD (up to 1080p) views scaled to camera angles with minimal setup costs. The basic concept is simple: the output of a single 4K/UHD camera is connected to the KMU-100, which then displays up to four cropped 16:9 windows that are sent as four separate HD-SDI signals.

Optionally, the Datavideo RMC-185 camera controller can be added to facilitate user pan, tilt, and zoom of windows on the 4K signal. You can configure these shots in advance and save them as a preset or do it in real time.

Features :

Video inputs

Quad SDI, 6G-SDI or 12G-SDI
HDMI 2.0 video input with support for 2160p60
DisplayPort video input with support for 2160p60
SDI video output

4x 3G-SDI

Screen

2x HDMI 1.4

Audio

SDI audio input (16 channels)
SDI audio output (16 channels)
Sync Input (Genlock)

Blackburst or Tri Level Sync
Computer Interface

Ethernet RJ45 for configuration and updates (for laptop)
RS-232 / RS-422 x 1
